Resilient Urgent Scheduling for Sage

Authors: Dave MacDonald (UC Davis), Sean Huang (University of Chicago), Clément Nunes (Inria), and Morty

Urgent computing aims to produce a useful result before that result loses its value. A correct decision delivered after its operational deadline can be as unhelpful as a wrong decision.

This project adds an explainable urgent-computing scheduling policy for edge applications. It decides which ready application should start next, checks whether it can start safely, and explains the decision. The decision engine is application-agnostic; Mortimus is the concrete integration target used here to explain and validate it.

The implementation is available in the scheduler source repository.

The problem

Sage nodes run multiple applications on limited edge hardware. Routine work and time-sensitive events may compete for the same CPU, memory, GPU, and execution slots while priorities and deadlines change.

Mortimus makes this problem concrete. Routine landscape observation may wait, but a possible smoke event makes timely inference more valuable. The scheduling policy must answer three questions:

1. Which ready application should start next?
2. Can it start without exceeding safe limits?
3. Why was each application selected, deferred, or rejected?

Project goal

The goal is not to build a policy that works only for Mortimus. It is to provide a reusable urgent-computing scheduling policy at Sage's ready-application selection point.

The scheduling policy is designed to:

• favor deadline-sensitive work while using queue age to reduce starvation;
• enforce configured concurrency and trusted resource limits;
• return deterministic decisions with a reason for every candidate;
• continue with a bounded queue-order fallback if the main policy fails;
• remain reusable across applications and testable without a live cluster.

Sage remains the platform orchestrator. The scheduling policy changes only which ready application is selected inside its existing workflow; it does not replace Beehive, WES, Kubernetes, or the NodeScheduler controller's responsibilities. Deployment may still package that controller in a replacement binary or image.

How the scheduling policy fits into Sage

The Sage adapter converts ready and active Waggle runtimes into generic task data. The scheduling policy returns explained decisions, the existing NodeScheduler creates Pods, and Kubernetes places and runs them. Another controller can reuse the decision engine through its own adapter.

The current Sage adapter implements Waggle's Go scheduling-policy interface and is compiled into this repository's replacement waggle-nodescheduler binary. Upstream Waggle's policy argument selects a policy registered in its compiled binary. This repository instead injects its adapter and accepts only -policy resilient-urgent; neither path dynamically loads a Python script. A policy written in Python or another language would therefore need a compiled bridge or another explicit process boundary.

A Kubernetes Scheduling Framework plugin or a separate Kubernetes scheduler is another possible implementation direction. It operates one level lower, filtering and scoring nodes for Pods after Sage has selected an application. The current project keeps urgent application selection in Waggle's NodeScheduler and leaves Pod placement to the configured Kubernetes scheduler.

Mortimus integration target

Mortimus is a Sage application for a field-vision scenario. Cameras observe a remote landscape, inference runs close to the data, and the wider system can publish a compact result instead of continuously moving full-resolution imagery.

The two scenes illustrate the operational change that creates urgency:

Routine landscape observation	Possible smoke event

In urgent computing, the right result delivered too late is the wrong result.

These are project-context images, not policy output or evaluation results.

The scheduling policy does not detect smoke or choose an AI model. When Sage makes the Mortimus application ready, the policy can rank and admit it like any other Sage workload. The repository prepares this integration boundary, but it does not contain an end-to-end Mortimus deployment.

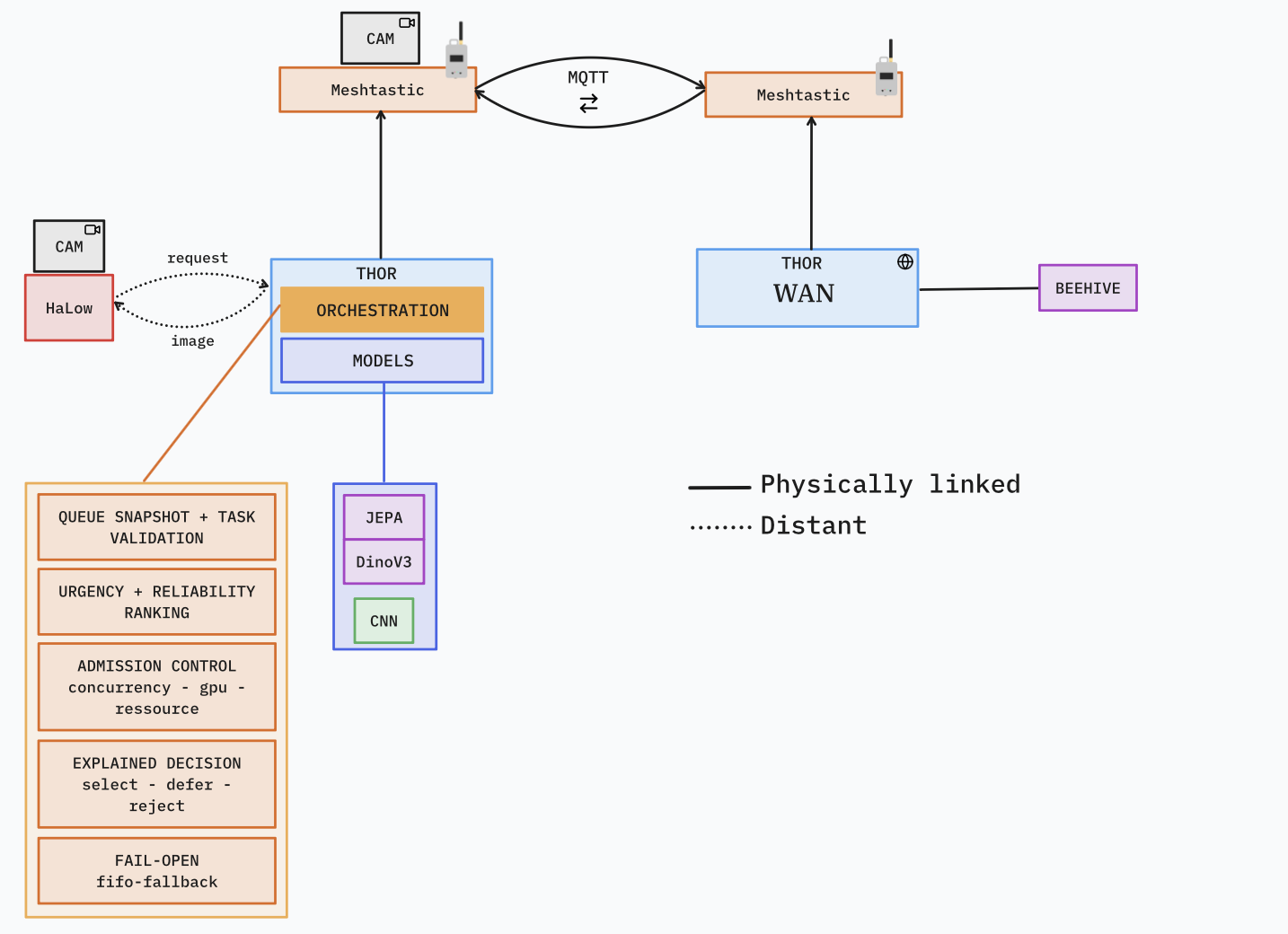

The wider Mortimus concept connects the cameras, local inference on a Sage Thor node, the scheduler, a low-bandwidth Meshtastic path, and optional Beehive publication:

Conceptual system context. Solid lines represent physically linked components; dotted lines represent distant request or image exchange.

In this design, the scheduling policy remains application-agnostic. The companion Sage Meshtastic project explores the low-bandwidth control and verdict path rather than embedding that transport in the scheduling policy.

The repository also includes an optional paired-camera core for a primary and an additional HaLow image source. It correlates the captures and validates time, pose, size, and transfer integrity before calling an injected analyzer. This is an optional application feature, not a scheduling-policy requirement. Camera drivers, MQTT/Meshtastic adapters, storage, AI models, and Beehive publication remain separate integration work.

Concepts in more detail

Term	Meaning in this project
Intent	The desired result, without prescribing how to obtain it.
Policy	The explicit rules used to rank ready applications and decide which may start.
Admission	The checks that enforce concurrency and trusted resource limits.
Selected	Valid work admitted to start now.
Deferred	Valid work that remains queued because it cannot start now.
Rejected	Invalid or ineligible work.
Fail-open	A bounded queue-order decision fallback used only when the main policy fails.

The optional intentctl feature converts natural language into a small, reviewable Sage science-goal draft. It always requires human approval and does not select plugins, assign priority, submit jobs, or bypass the policy.

Urgency is represented through deadline slack:

slack = deadline - current time - estimated runtime

Negative slack means that an on-time finish is already unlikely. The wider urgent-computing problem may also involve data movement, network conditions, energy, cost, and result quality. The current policy is narrower: it uses priority, slack, queue age, a provided success-probability estimate, and bounded resource information.

How the policy decides

1. Observe and validate ready and active tasks.
2. Rank valid tasks using priority, deadline slack, queue age, and provided success probability.
3. Admit tasks within total/GPU concurrency limits and, when trustworthy capacity exists, CPU/memory/GPU limits.
4. Explain every selection, deferral, or rejection with a stable reason.
5. Degrade safely to bounded FIFO if the engine fails and fail-open is enabled.

Fail-open preserves basic scheduling continuity. It is not retry, migration, checkpoint recovery, or automatic model switching.

Implemented components

Component	Current role
Policy engine	Deterministic ranking, admission, and explained decisions.
Sage/Waggle adapter and waggle-nodescheduler	Inject the policy into the existing Sage scheduler.
policyctl	Validate configuration and replay queue snapshots offline.
chaoslab	Measure sensitivity to controlled input changes; it does not inject live failures.
intentctl	Produce a strict, human-reviewed Sage science-goal draft.

The included replay shows the intended behavior: an urgent smoke-detector with negative slack is selected, while a routine image-sampler is deferred by the concurrency limit and remains eligible to run later.

Current status and next validation

The policy engine is tested offline and the Sage integration is prepared, but it has not been deployed on a Sage node. Resource fitting remains off by default until Sage supplies trustworthy capacity data, and upstream queue identity and snapshot issues must be resolved before deployment.

The validation direction is policy replay, KWOK control-plane scenarios, k3s execution tests, Sage shadow mode, and then a controlled Mortimus deployment.

Artifacts of accomplishments

• Project explanation PDF
• Repository guide PDF
• Chaos sensitivity experiment
• Classroom notes and workshop tutorial

Sources and research directions

The first group documents the interfaces and test tools used by the repository. The remaining papers motivate the design or identify research directions. A citation does not mean that prediction, preemption, migration, model adaptation, or edge-to-cloud reconfiguration is implemented here.

Current interfaces and validation

Source	Use in this project
Waggle edge-scheduler, the pinned NodeScheduler policy interface, and its upstream policy selector	This is the implemented integration seam. Upstream selects a registered, compiled Go policy. This repository's replacement binary compiles and injects its adapter and accepts only -policy resilient-urgent; other languages require an explicit bridge.
Kubernetes Scheduler and its Scheduling Framework	Kubernetes filters feasible nodes and scores them using configured plugins and constraints. A custom plugin or separate scheduler is a possible alternative, but the current scheduling policy acts earlier, when Sage selects an application.
KWOK and its scheduling test scenarios	KWOK can exercise Kubernetes objects, placement rules, priority, and control-plane transitions at scale. It does not run the real containers or validate inference latency, GPU behavior, sensors, networks, or physical failures.

Research foundations

Publication	Why it matters here
Leong and Kranzlmüller, Towards a General Definition of Urgent Computing (2015)	Grounds the central requirement: computation must start promptly and finish before its result can no longer support mitigation.
Dazzi et al., Urgent Edge Computing (2024)	Connects urgent computing with sensing at the edge, heterogeneous resources, latency, availability, and decentralization.
Kim et al., Goal-driven scheduling model in edge computing for smart city applications (2022)	The closest Sage foundation: science goals, context-aware decisions, and a two-layer cloud/edge scheduling model.
Kim et al., Towards Adaptive Resource Management and Control on Edge Platform for AI Applications (2023)	Motivates a generic application–scheduler contract in which applications expose metrics and control points without placing application logic inside the scheduler.
Collis et al., Introducing Sage: Cyberinfrastructure for Sensing at the Edge (2020)	Provides the Sage platform context: multi-tenant, multi-task sensing, edge machine learning, and early wildfire detection among the motivating workloads.
Balouek-Thomert, Rodero, and Parashar, Harnessing the Computing Continuum for Urgent Science (2020)	Frames time-critical scientific workflows across edge and cloud resources; it informs the wider direction beyond this node-level scheduling policy.
Balouek-Thomert, Rodero, and Parashar, Evaluating Policy-Driven Adaptation on the Edge-to-Cloud Continuum (2021)	Supports explicit policies and trade-offs among deadlines, resources, response time, and result quality. The current implementation ranks and admits tasks; it does not reconfigure the continuum.
Čyras et al., Argumentation for Explainable Scheduling (2019)	Reinforces the need to explain scheduling decisions. This project emits deterministic reason codes; it does not implement the paper's argumentation framework.

Learn more

Full source, architecture docs, and replay data are available in the project repository.
